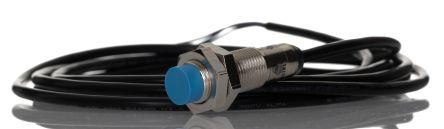

Sick Inductive prox sensor IME12-04NNOZW2K IME12-04NNOZW2K

0 in stock

£25.35(exc. VAT)

£30.42(inc. VAT)

Mfr part no: IME12-04NNOZW2K

RS Stock No.: 2093474

Brand: Sick

Technical Reference

Attribute	Value
Mounting Type	Non-flush
Thread Size	M12 x 1
Terminal Type	2m Cable
Housing Material	Metal
Body Style	Cylindrical
Supply Voltage	10 V to 30 V
Output Type	NPN NC
Maximum Operating Temperature	75 °C
Sensor Technology	Inductive
Shielding
Minimum Operating Temperature	-25 °C
IP Rating	IP67
Reverse Polarity Protection	Yes
Manufacturer	Sick
Shape
Series
Hazardous Area Certification
Standards/Approvals
Brand	Sick
Supply Voltage DC Max	30 V
Application
Communication Interface
Sensing Distance	4 mm
Transducer Frequency
Accessory Type
For Use With
Switching Frequency
Switching Current	200 mA
Short Circuit Overload Protection	Yes
Length	44 mm
Switching Frequency Max	2 kHz
Dimensions
Width	12 mm
Electrical Connection	2 m Cable
