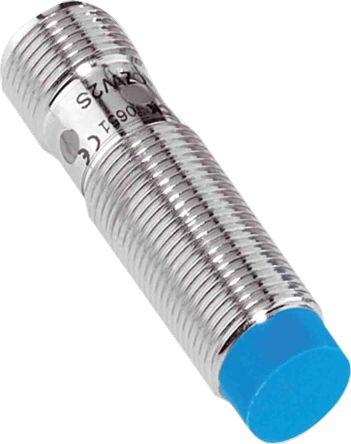

Inductive prox sensor IME12-04NPPZC0K

Technical Specifications

Attribute	Value
Supply Voltage	10 to 30
Output Type	PNP
Maximum Operating Temperature	75
Sensor Technology	Inductive
Shielding
IP Rating	IP67
Reverse Polarity Protection	Yes
Mounting Type	Non-Flush
Thread Size	M12 x 1
Housing Material	Metal
Body Style	Cylindrical
Manufacturer	Sick
Series
Depth
Standards/Approvals
Brand	Sick
Communication Interface
Sensing Distance	4 mm
Switching Frequency
Switching Current	200
Short Circuit Overload Protection	Yes
Length	46
Dimensions
Electrical Connection	2 m Cable
