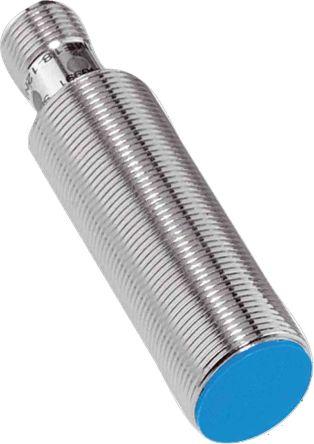

Inductive prox sensor IME18-05BPOZC0S

Technical Specifications

Attribute	Value
Supply Voltage	10 to 30
Output Type	PNP-NC
Maximum Operating Temperature	75
Sensor Technology	Inductive
Shielding
IP Rating	IP67
Reverse Polarity Protection	Yes
Mounting Type	Flush
Thread Size	M18 x 1
Housing Material	Metal
Body Style	Cylindrical
Manufacturer	Sick
Series
Depth
Standards/Approvals
Brand	Sick
Communication Interface
Sensing Distance	5 mm
Switching Frequency
Switching Current	200
Short Circuit Overload Protection	Yes
Length	69
Dimensions
Electrical Connection	4-Pin, M12
