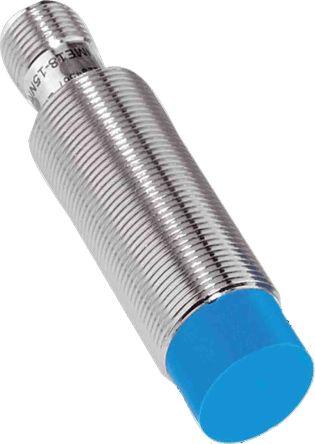

Sick Inductive prox sensor IME18-08NPPZC0S IME18-08NPPZC0S

27 in stock

£33.87(exc. VAT)

£40.64(inc. VAT)

Mfr part no: IME18-08NPPZC0S

RS Stock No.: 2093572

Brand: Sick

Technical Reference

Attribute	Value
Sensor Technology	Inductive
IP Rating	IP67 - dust tight; water immersion protected
Minimum Operating Temperature	-25 °C
Maximum Operating Temperature	75 °C
Shielding	Unshielded
Reverse Polarity Protection	Yes
Output Type	PNP
Thread Size	M18
Terminal Type	4-Pin M12 Connector
Mounting Type	Non-Flush
Housing Material	Metal
Body Style	Barrel
Standards Met	cULus Listed, CE Marked
Material Detected	Metal
Brand	Sick
Detection Type
Switching Mode
Light Source
Hazardous Area Certification
Maximum Detection Range	8 mm
Minimum Detection Range	0 mm
Maximum DC Supply Voltage	30 V
Minimum DC Supply Voltage	10 V
Maximum AC output current	200 mA
Electrical Connection	Connector
Dimensions	M18 x 69 mm
Length	69 mm
