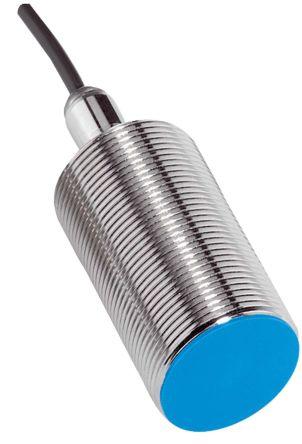

Sick Inductive prox sensor IME30-15BNSZW5S IME30-15BNSZW5S

0 in stock

£40.96(exc. VAT)

£49.15(inc. VAT)

Mfr part no: IME30-15BNSZW5S

RS Stock No.: 2092435

Brand: Sick

Technical Reference

Attribute	Value
Thread Size	M30
Terminal Type	2-Wire 5 m Cable
Mounting Type	Flush
Housing Material	Metal
Body Style	Barrel
Sensor Technology	Inductive
IP Rating	IP67 - dust tight; water immersion protected
Minimum Operating Temperature	-25 °C
Maximum Operating Temperature	75 °C
Shielding	Shielded
Reverse Polarity Protection	Yes
Output Type	NPN
Standards Met	cULus Listed, CE Marked
Material Detected	Metal
Brand	Sick
Detection Type
Switching Mode
Light Source
Hazardous Area Certification
Maximum Detection Range	15 mm
Minimum Detection Range	0 mm
Maximum DC Supply Voltage	30 V
Minimum DC Supply Voltage	10 V
Maximum AC output current	200 mA
Electrical Connection	Cable
Dimensions	M30 x 70 mm
Length	70 mm
Series

Discover products which meet the same requirements in terms of sensing technology, protection level, detection range and key electrical properties.
