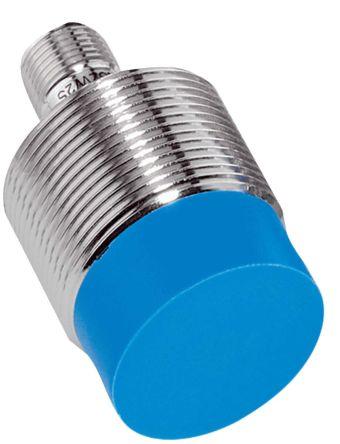

Sick Inductive prox sensor IME30-15NPSZC0K IME30-15NPSZC0K

8 in stock

£24.39(exc. VAT)

£29.27(inc. VAT)

Mfr part no: IME30-15NPSZC0K

RS Stock No.: 2092447

Brand: Sick

Technical Reference

Attribute	Value
Supply Voltage	10 V to 30 V
Output Type	PNP NO
Maximum Operating Temperature	75 °C
Sensor Technology	Inductive
Shielding
Minimum Operating Temperature	-25 °C
IP Rating	IP67
Reverse Polarity Protection	Yes
Mounting Type	Non-flush
Thread Size	M30 x 1.5
Terminal Type	4-Pin M12 Connector
Housing Material	Metal
Body Style	Cylindrical
Manufacturer	Sick
Shape
Series
Hazardous Area Certification
Standards/Approvals
Brand	Sick
Supply Voltage DC Max	30 V
Application
Communication Interface
Sensing Distance	15 mm
Transducer Frequency
Accessory Type
For Use With
Switching Frequency
Switching Current	200 mA
Short Circuit Overload Protection	Yes
Length	52 mm
Switching Frequency Max	0.5 kHz
Dimensions
Width	30 mm
Electrical Connection	4-Pin M12 Connector
