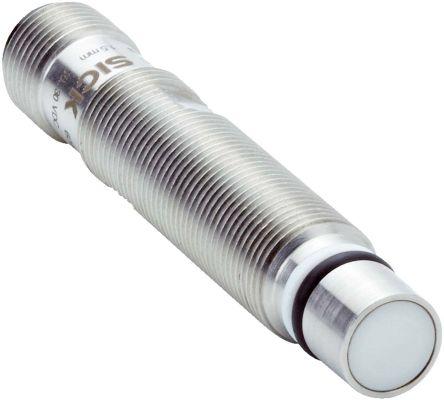

Inductive prox sensor IMP12-1B5PPVC0B

Technical Specifications

Attribute	Value
Mounting Type	Flush
Thread Size	M12 x 1
Housing Material	Stainless Steel
Body Style	Cylindrical
Supply Voltage	10 to 30
Output Type	PNP
Maximum Operating Temperature	100
Sensor Technology	Inductive
Shielding
IP Rating	IP68
Reverse Polarity Protection	Yes
Manufacturer	Sick
Series
Depth
Standards/Approvals
Brand	Sick
Communication Interface
Sensing Distance	1.5 mm
Switching Frequency
Switching Current	200
Short Circuit Overload Protection	Yes
Length	56
Dimensions
Electrical Connection	4-Pin, M12
