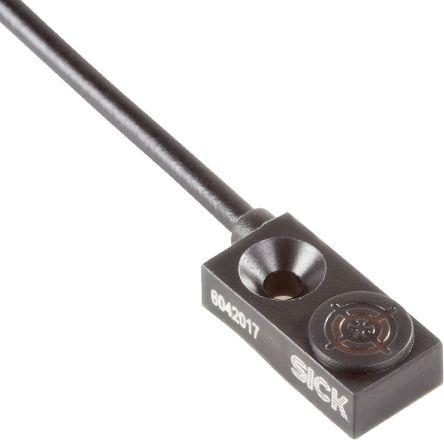

Inductive prox sensor IQ04-1B5NOKW2S

Technical Specifications

Attribute	Value
Mounting Type	Flush
Thread Size
Housing Material	Plastic
Body Style	Rectangular
Supply Voltage	10 to 30
Output Type	NPN-NC
Maximum Operating Temperature	70
Sensor Technology	Inductive
Shielding
IP Rating	IP67
Reverse Polarity Protection
Manufacturer	Sick
Series
Depth	16
Standards/Approvals
Brand	Sick
Communication Interface
Sensing Distance	1.5 mm
Switching Frequency
Switching Current	100
Short Circuit Overload Protection	Yes
Length	4
Dimensions	4 x 8 x 16
Electrical Connection
