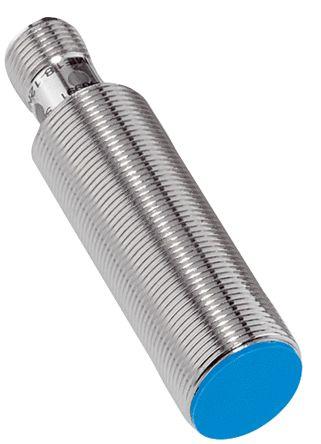

Sick Inductive proximity sensor IME18-12BPOZC IME18-12BPOZC0S

51 in stock

£50.61(exc. VAT)

£60.73(inc. VAT)

Mfr part no: IME18-12BPOZC0S

RS Stock No.: 1846358

Brand: Sick

Technical Reference

Attribute	Value
Thread Size	M18
Terminal Type	4-Pin M12 Connector
Mounting Type	Flush
Housing Material	Nickel-Plated Brass
Body Style	Barrel
Sensor Technology	Inductive
IP Rating	IP67 - dust tight; water immersion protected
Minimum Operating Temperature	-25 °C
Maximum Operating Temperature	75 °C
Shielding	Shielded
Reverse Polarity Protection	Yes
Output Type	PNP
Standards Met	cULus Listed, CE Marked
Material Detected	Metal
Brand	Sick
Detection Type
Switching Mode
Light Source
Hazardous Area Certification
Maximum Detection Range	12 mm
Minimum Detection Range	0 mm
Maximum DC Supply Voltage	30 V
Minimum DC Supply Voltage	10 V
Maximum AC output current	10 mA
Electrical Connection	Connector
Dimensions	M18 x 69 mm
Length	69 mm
