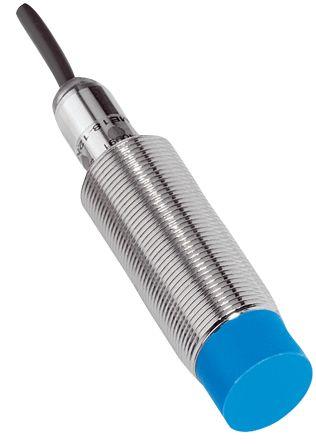

Inductive proximity sensor IME18-20NPSZW

Technical Specifications

Attribute	Value
Supply Voltage	10 to 30
Output Type	PNP
Maximum Operating Temperature	75
Sensor Technology	Inductive
Shielding	Shielded
IP Rating	IP67
Reverse Polarity Protection	Yes
Mounting Type	Non-Flush
Thread Size	M18 x 1
Housing Material	Nickel Plated Brass
Body Style	Cylindrical
Manufacturer	Sick
Series
Depth
Standards/Approvals	cULus Listed, CE Certified
Brand	Sick
Communication Interface
Sensing Distance	20 mm
Switching Frequency
Switching Current	10
Short Circuit Overload Protection	Yes
Length	67
Dimensions
Electrical Connection	3-Wire, 2 m Cable
