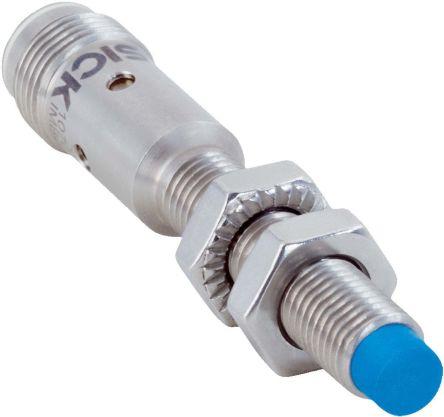

Inductive sensor IO-Link

Technical Specifications

Attribute	Value
Mounting Type	Non-Flush
Thread Size	M8 x 1
Housing Material	Stainless Steel
Body Style	Cylindrical
Supply Voltage	10 to 30
Output Type	PNP
Maximum Operating Temperature	75
Sensor Technology	Inductive
Shielding	Unshielded
IP Rating	IP69K, IP68
Reverse Polarity Protection	Yes
Manufacturer	Sick
Series
Depth
Standards/Approvals	CE, cULus, EN 60529, EN 60947-5-2 Certified
Brand	Sick
Communication Interface	IO-LINK
Sensing Distance	4 mm
Switching Frequency
Switching Current	200
Short Circuit Overload Protection	Yes
Length	60
Dimensions
Electrical Connection	4-Pin, M12
