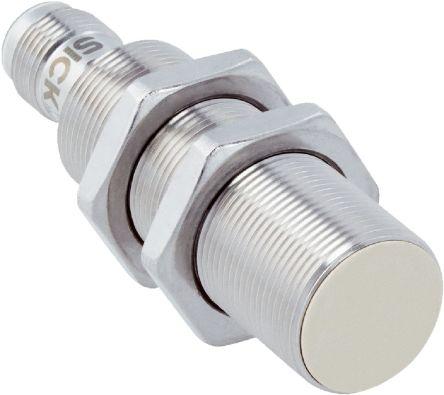

Sick Inductive sensor Sr 12mm non flush PNP IMF18-12NPPNC0S

32 in stock

£59.13(exc. VAT)

£70.96(inc. VAT)

Mfr part no: IMF18-12NPPNC0S

RS Stock No.: 1212736

Brand: Sick

Technical Reference

Attribute	Value
Sensor Technology	Inductive
IP Rating	IP68 - dust tight; water submersion protected, IP69K - dust tight; close-range high-pressure hot water protected
Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	100 °C
Shielding	Unshielded
Reverse Polarity Protection	Yes
Output Type	PNP
Thread Size	M18
Terminal Type	4-Pin M12 Connector
Mounting Type	Non-Flush
Housing Material	Stainless Steel
Body Style	Barrel
Standards Met	UL Certified, FDA Approved, cULus Listed, EN 60947-5-2, CE Marked
Material Detected	Metal
Brand	Sick
Detection Type
Switching Mode
Light Source
Hazardous Area Certification
Maximum Detection Range	12 mm
Minimum Detection Range	0 mm
Maximum DC Supply Voltage	30 V
Minimum DC Supply Voltage	10 V
Maximum AC output current	200 mA
Electrical Connection	Connector
Dimensions	M18 x 65 mm
Length	65 mm
