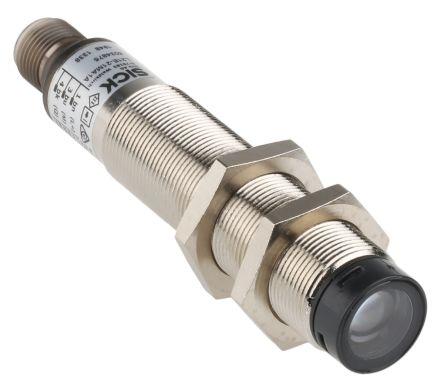

Sick Light beam receiver M18, 10m, Type 2 PLc

RS Stock No: 7019269

Mfr Part No: L21E-21MA1A

Brand: Sick

Light beam receiver M18, 10m, Type 2 PLc
In stock - 6
£142.85(exc. VAT)
£171.42(inc. VAT)
Add to RS basket
1

Technical Assets

Technical Specifications

AttributeValue
Supply Voltage28.8 V
Output TypeEtherCAT, Ethernet/IP, CANopen, DeviceNet, PROFIBUS DP, PROFINET, Modbus TCP
ManufacturerSick
Number of Beams1
FeaturesMuting, EDM
SeriesL2000
Product Range
BrandSick
ApplicationBody
Sensing Distance Max16000 mm
Height
Number of protective fields
Response Time0.2 ms
Switching Current30 mA
DiameterM18
PL (EN ISO 13849-1)PL c
Length97.7 mm
Scanning angle
Sensing Distance Min0 mm
Component TypeReceiver
DimensionsM18 x 97.7 mm
Width
Peak Wavelength660 nm
Electrical ConnectionM12 Connector
Safety Type2
SIL (IEC 61508)1
