Technical Reference

Technical Specifications

AttributeValue
Mounting TypeG1/2 Thread
Thread Size
Housing MaterialStainless Steel
Output TypeNPN NC
Maximum Operating Temperature55
Minimum Operating Temperature-25
ManufacturerSick
SeriesGRF
Maximum Pressure Reading16 bar

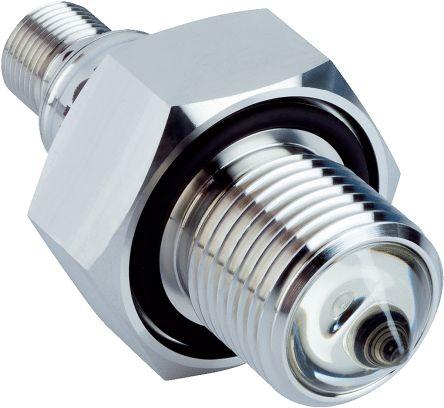

Sensor TypeOptical Point Level Switch
Hazardous Area Certification
Standards/ApprovalsUL Listed, CE Certified
Gasket Material
BrandSick
Supply Voltage DC Max30 V
Sensing Distance Max67 mm
Operating Temperature
Communication Interface
Process Connection
For Use With
Maximum Switching Current30 mA
Cable Length
Supply Voltage AC Max
