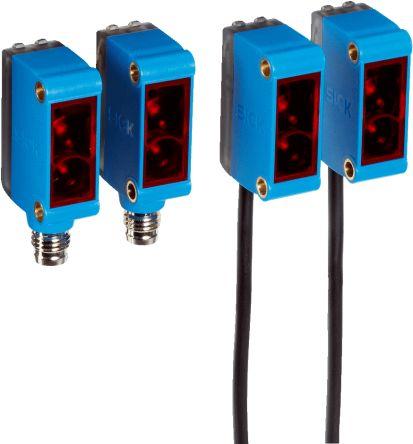

Sick Photoelectric Sensor GSE6-N4112 GSE6-N4112

2 in stock

£105.01(exc. VAT)

£126.01(inc. VAT)

Mfr part no: GSE6-N4112

RS Stock No.: 2122902

Brand: Sick

Technical Reference

Attribute	Value
Thread Size
Terminal Type	4-Pin M8 Connector
Mounting Type
Housing Material	Plastic
Body Style	Rectangular
Sensor Technology	Photoelectric
IP Rating	IP67 - dust tight; water immersion protected
Minimum Operating Temperature	-25 °C
Maximum Operating Temperature	55 °C
Shielding	N/A
Reverse Polarity Protection
Output Type	NPN
Standards Met	CE Marked, cULus Recognized
Material Detected	Metal, Plastic - Opaque, Glass - Opaque
Brand	Sick
Detection Type	Through Beam
Switching Mode	Light/Dark switching
Light Source	Polarized
Hazardous Area Certification
Maximum Detection Range	15000 mm
Minimum Detection Range	0 mm
Maximum DC Supply Voltage	30 V
Minimum DC Supply Voltage	10 V
Electrical Connection	Connector
Dimensions
Length	21 mm
Width	12 mm
Height	31.5 mm
Series	G6
