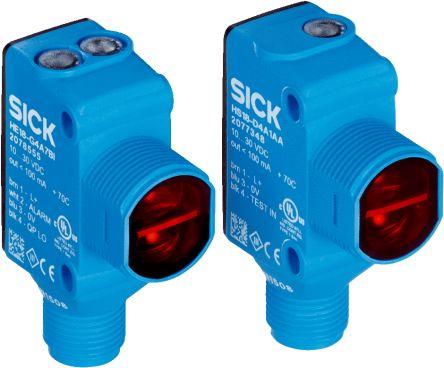

Sick Photoelectric Sensor HSE18-B4A2BA HSE18-B4A2BA

1 in stock

£143.79(exc. VAT)

£172.55(inc. VAT)

Mfr part no: HSE18-B4A2BA

RS Stock No.: 2122918

Brand: Sick

Technical Reference

Attribute	Value
Thread Size	M18
Terminal Type	4-Pin M12 Connector
Mounting Type
Housing Material	Plastic
Body Style	Rectangular
Sensor Technology	Photoelectric
IP Rating	IP67 - dust tight; water immersion protected, IP69K - dust tight; close-range high-pressure hot water protected
Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	70 °C
Shielding	N/A
Reverse Polarity Protection
Output Type	PNP/NPN
Standards Met	CE Marked, cULus Recognized
Material Detected	Metal, Plastic - Opaque, Glass - Opaque
Brand	Sick
Detection Type	Through Beam
Switching Mode	Light Switching
Light Source	LED
Hazardous Area Certification
Maximum Detection Range	25000 mm
Minimum Detection Range	0 mm
Maximum DC Supply Voltage	30 V
Minimum DC Supply Voltage	10 V
Electrical Connection	Connector
Dimensions
Length	31.8 mm
Width	16.2 mm
Height	48.5 mm
Series	SureSense
