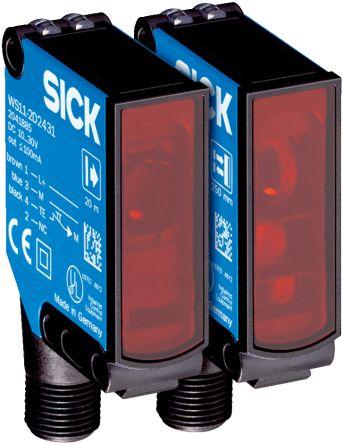

Sick Photoelectric Sensor WSE11-2K2430 WSE11-2K2430

4 in stock

£147.58(exc. VAT)

£177.10(inc. VAT)

Mfr part no: WSE11-2K2430

RS Stock No.: 2122957

Brand: Sick

Technical Reference

Attribute	Value
Sensor Technology	Photoelectric
IP Rating	IP67 - dust tight; water immersion protected, IP66 - dust tight; heavy seas protected, IP69K - dust tight; close-range high-pressure hot water protected
Minimum Operating Temperature	-30 °C
Maximum Operating Temperature	60 °C
Shielding	N/A
Reverse Polarity Protection
Output Type	PNP
Standards Met	CE Marked
Thread Size	M12
Terminal Type	4-Pin M12 Connector
Mounting Type
Housing Material	Plastic
Body Style	Rectangular
Material Detected	Metal, Plastic - Opaque, Glass - Opaque
Brand	Sick
Detection Type	Through Beam
Switching Mode	Light/Dark switching
Light Source	Polarized
Hazardous Area Certification
Maximum Detection Range	20000 mm
Minimum Detection Range	0 mm
Maximum DC Supply Voltage	30 V
Minimum DC Supply Voltage	10 V
Electrical Connection	Connector
Dimensions	15.6 x 48.5 x 42 mm
Length	42 mm
Width	15.6 mm
Height	48.5 mm
Series	W11-2
