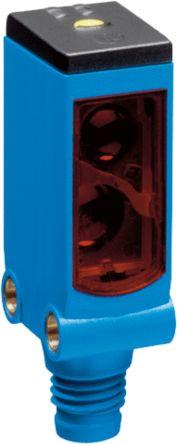

Sick Photoelectric Sensor WTB4S-3P2264 WTB4S-3P2264

0 in stock

£174.06(exc. VAT)

£208.87(inc. VAT)

Mfr part no: WTB4S-3P2264

RS Stock No.: 2103908

Brand: Sick

Technical Reference

Attribute	Value
Thread Size	M8
Terminal Type	4-Pin M8 Connector
Mounting Type
Housing Material	Plastic
Body Style	Rectangular
Standards Met	UL Certified, CE Marked
Sensor Technology	Photoelectric
IP Rating	IP67 - dust tight; water immersion protected, IP66 - dust tight; heavy seas protected
Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	60 °C
Shielding	N/A
Reverse Polarity Protection
Output Type	PNP
Material Detected	Metal, Plastic - Opaque, Glass - Opaque
Brand	Sick
Detection Type	Background Suppression
Switching Mode	Light Switching
Light Source	LED
Hazardous Area Certification
Maximum Detection Range	150 mm
Minimum Detection Range	4 mm
Maximum DC Supply Voltage	30 V
Minimum DC Supply Voltage	10 V
Electrical Connection	Connector
Dimensions	12.2 x 41.8 x 17.3 mm
Length	17.3 mm
Width	12.2 mm
Height	41.8 mm
Series	W4S-3
