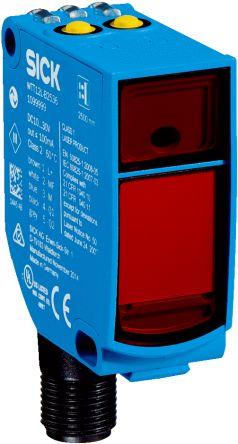

Sick Photoelectric Sensor WTT12L-B2593 WTT12L-B2593

0 in stock

£326.37(exc. VAT)

£391.64(inc. VAT)

Mfr part no: WTT12L-B2593

RS Stock No.: 2103760

Brand: Sick

Technical Reference

Attribute	Value
Standards Met	UL Certified, CE Marked
Thread Size	M12
Terminal Type	5-Pin M12 Connector
Mounting Type
Housing Material	Plastic
Body Style	Rectangular
Sensor Technology	Photoelectric
IP Rating	IP67 - dust tight; water immersion protected
Minimum Operating Temperature	-25 °C
Maximum Operating Temperature	50 °C
Shielding	N/A
Reverse Polarity Protection
Output Type	PNP/NPN
Material Detected	Metal, Plastic - Opaque, Glass - Opaque
Brand	Sick
Detection Type	Background Suppression
Switching Mode	Light Switching
Light Source	Infrared
Hazardous Area Certification
Maximum Detection Range	3800 mm
Minimum Detection Range	50 mm
Maximum DC Supply Voltage	30 V
Minimum DC Supply Voltage	10 V
Electrical Connection	Connector
Dimensions	20 x 49.6 x 44.2 mm
Length	44.2 mm
Width	20 mm
Height	49.6 mm
Series	PowerProx
