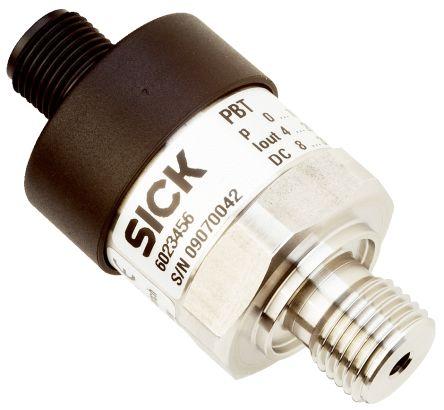

Pressure Sensor PBT-RB600SG1SSNAMA0Z

Technical Reference

Attribute	Value
Mounting Type	Threaded
Housing Material	Stainless Steel/Plastic
Supply Voltage	8 V dc-30 V dc
Output Type	4-20 mA
Maximum Operating Temperature	+80 °C
Minimum Operating Temperature	0 °C
IP Rating	IP67
Manufacturer	Sick
Series	PBT
Media Monitored	Water, Liquid, Oil, Hydraulic Fluid, Gas, Air
Maximum Pressure Reading	600 bar
Brand	Sick
Accuracy %	±1%
Communication Interface
Response Time	4 ms
Process Connection	G 1/4
Pressure Type	Relative
Maximum Switching Current	25 mA
Pressure Reading Min	0 bar
Electrical Connection	M12 Connector
