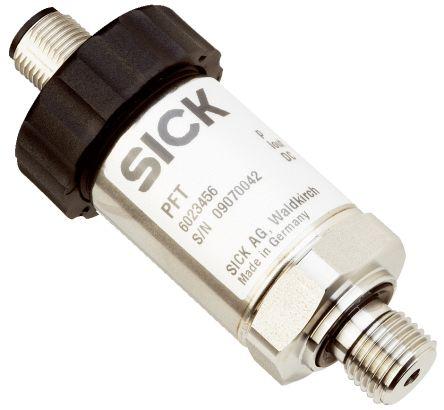

Pressure Sensor PFT-SRBX40SG1SSAAMSSZ

Technical Specifications

Attribute	Value
Mounting Type	Threaded
Housing Material	Stainless Steel/Plastic
Supply Voltage	10 V dc-30 V dc
Output Type	4-20 mA
Maximum Operating Temperature	+100 °C
Minimum Operating Temperature	-30 °C
IP Rating	IP67
Manufacturer	Sick
Series	PFT
Media Monitored	Water, Liquid, Oil, Hydraulic Fluid, Gas, Air
Maximum Pressure Reading	0.4 bar
Brand	Sick
Accuracy %	±0.5%
Communication Interface
Response Time	1 ms
Process Connection	G 1/4
Pressure Type	Relative
Maximum Switching Current	25 mA
Pressure Reading Min	0 bar
Electrical Connection	M12 Connector
