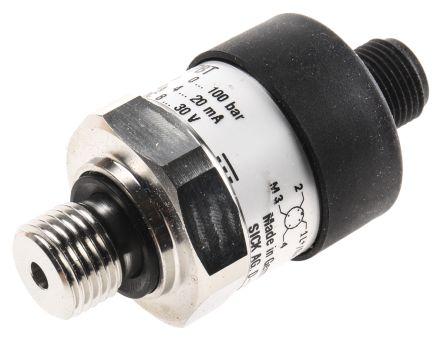

Pressure sensor,0-100bar,G1/4 male

Technical Reference

Attribute	Value
Supply Voltage	8 V dc-30 V dc
Output Type	4-20 mA
Maximum Operating Temperature	+80 °C
Minimum Operating Temperature	0 °C
IP Rating	IP67
Mounting Type
Housing Material	Stainless Steel
Manufacturer	Sick
Series
Media Monitored	Fluid, Gas
Maximum Pressure Reading	100 bar
Brand	Sick
Accuracy %	±0.5%
Communication Interface
Response Time	4 ms
Process Connection	G 1/4
Pressure Type	Relative
Maximum Switching Current	25 mA
Pressure Reading Min	0 bar
Electrical Connection	M12 Connector
