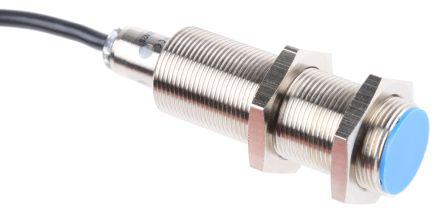

Technical Specifications

AttributeValue
Supply Voltage10 V to 30 V
Output TypeNPN
Maximum Operating Temperature75
Sensor TechnologyInductive
ShieldingShielded
Minimum Operating Temperature-25
IP RatingIP67
Reverse Polarity ProtectionYes
Mounting TypeFlush
Thread SizeM18 x 1
Terminal TypeCable
Housing MaterialNickel Plated Brass
Body StyleCylindrical
ManufacturerSick
Shape
Series
Hazardous Area Certification
Standards/Approvals
BrandSick
Supply Voltage DC Max30 V
Application
Communication Interface
Sensing Distance8 mm
Transducer Frequency
Accessory Type
For Use With
Switching Frequency
Switching Current200 mA
Short Circuit Overload ProtectionYes
Length67
Switching Frequency Max1 kHz
Dimensions
Width18
Electrical ConnectionCable
