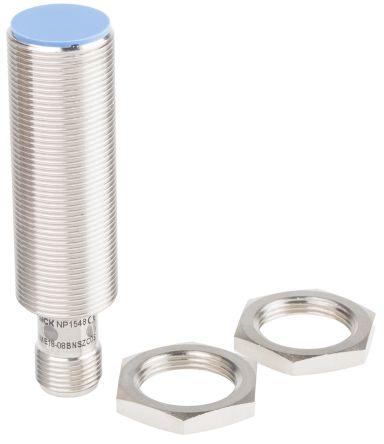

Sensor, Inductive, Sn 8mm, M18 NPN M12

Technical Reference

Attribute	Value
Mounting Type	Flush
Thread Size	M18 x 1
Housing Material	Nickel Plated Brass
Body Style	Cylindrical
Supply Voltage	10 to 30
Output Type	NPN
Maximum Operating Temperature	75
Sensor Technology	Inductive
Shielding	Shielded
IP Rating	IP67
Reverse Polarity Protection	Yes
Manufacturer	Sick
Series
Depth
Standards/Approvals
Brand	Sick
Communication Interface
Sensing Distance	8 mm
Switching Frequency
Switching Current	200
Short Circuit Overload Protection	Yes
Length	69
Dimensions
Electrical Connection	4-Pin, M12
