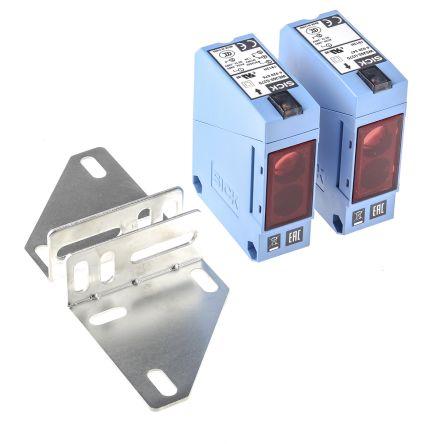

Sick Sensor, Thru-beam, Sr 40mm, relay output WS/WE260-S270

20 in stock

£254.47(exc. VAT)

£305.36(inc. VAT)

Mfr part no: WS/WE260-S270

RS Stock No.: 7865924

Brand: Sick

Technical Specifications

Attribute	Value
Thread Size
Terminal Type
Mounting Type	Panel Mount
Housing Material	Plastic
Body Style	Rectangular
Sensor Technology	Photoelectric
IP Rating	IP67 - dust tight; water immersion protected
Minimum Operating Temperature	-25 °C
Maximum Operating Temperature	55 °C
Shielding	N/A
Reverse Polarity Protection
Output Type	Electrically Isolated Relay
Standards Met	CE Marked
Material Detected	Metal, Plastic - Opaque, Glass - Opaque
Brand	Sick
Detection Type	Through Beam
Switching Mode	Light Switching
Light Source	LED
Hazardous Area Certification
Maximum Detection Range	45000 mm
Minimum Detection Range	0 mm
Maximum AC Supply Voltage	240 V
Minimum AC Supply Voltage	24 V
Maximum DC Supply Voltage	240 V
Minimum DC Supply Voltage	12 V
Electrical Connection	Cable Gland
Dimensions	25 x 78 x 63 mm
Length	63 mm
Width	25 mm
Height	78 mm
Series	W260
