Technical Reference

Technical Specifications

AttributeValue
Mounting TypeThreaded
Housing MaterialStainless Steel/Plastic
Supply Voltage8 V dc - 30 V dc
Output Type4 - 20 mA
Maximum Operating Temperature80
Minimum Operating Temperature0
IP RatingIP67

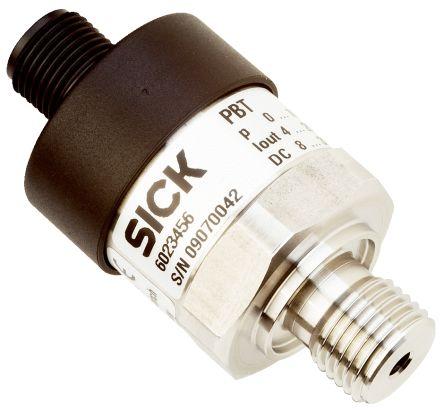

ManufacturerSick
SeriesPBT
Media MonitoredWater, Liquid, Oil, Hydraulic Fluid, Gas, Air
Maximum Pressure Reading10 bar
Hazardous Area Certification
Calibrated
BrandSick
Accuracy %±1%
Communication Interface
Response Time4 ms
Process ConnectionG 1/2
Pressure TypeRelative
For Use With
Maximum Switching Current25 mA
Pressure Reading Min0 bar
Electrical ConnectionM12 Connector
