Technical Reference

Technical Specifications

AttributeValue
Mounting Type
Thread Size
Terminal Type
Housing MaterialPlastic
Body StyleRectangular
Standards Met
Output TypePNP
Maximum Operating Temperature60 °C
Maximum DC Voltage30 V
Minimum Operating Temperature-30 °C
IP RatingIP66, IP69K, IP67
Detection Range10000 mm

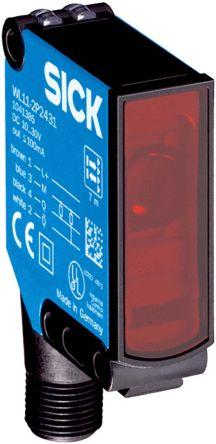

ManufacturerSick
Optical Technology
Detection TypeRetro-reflective
SeriesW11-2
Sensor TypeBlock
Light SourceInfrared LED
Maximum Current
Hazardous Area Certification
Switching Mode
BrandSick
Communication Interface
Response Time2.5 ms
Electrical ConnectionM12 Connector
