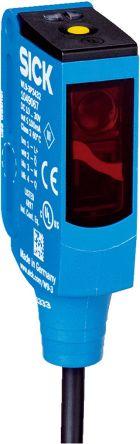

Sick Small photoelectric sensors , WL9G-3N11 WL9G-3N1132P06

0 in stock

£170.28(exc. VAT)

£204.34(inc. VAT)

Mfr part no: WL9G-3N1132P06

RS Stock No.: 2055250

Brand: Sick

Technical Reference

Attribute	Value
Sensor Technology	Photoelectric
IP Rating	IP67 - dust tight; water immersion protected, IP66 - dust tight; heavy seas protected, IP69K - dust tight; close-range high-pressure hot water protected
Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	60 °C
Shielding	N/A
Reverse Polarity Protection
Output Type	NPN
Standards Met	UL Certified, CE Marked
Thread Size
Terminal Type	4-Wire 2 m Cable
Mounting Type
Housing Material	Plastic
Body Style	Rectangular
Material Detected	Plastic - Transparent, Glass - Transparent
Brand	Sick
Detection Type	Retroreflective
Switching Mode	Light/Dark switching
Light Source	LED
Hazardous Area Certification
Maximum Detection Range	5000 mm
Minimum Detection Range	0 mm
Maximum DC Supply Voltage	30 V
Minimum DC Supply Voltage	10 V
Electrical Connection	Cable
Dimensions	12.2 x 50 x 23.6 mm
Length	23.6 mm
Width	12.2 mm
Height	50 mm
Series	W9
