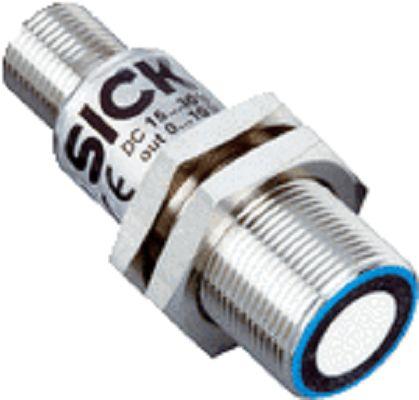

Ultrasonic Distnce Sensor UM18-21812B211

Technical Reference

Attribute	Value
Supply Voltage	, 10-30
Output Type	PNP, PNP-NPN, NPN
Maximum Operating Temperature	70
Sensor Technology	Ultrasonic
Shielding	Partial
Minimum Operating Temperature	-25
IP Rating
Reverse Polarity Protection	Yes
Mounting Type	Flush
Thread Size	M18 x 1
Terminal Type	M12 Connector
Housing Material	Metal
Body Style	Cylindrical
Manufacturer	Sick
Shape
Detection Type
Series	UM-18
Depth	52.7
Supply Voltage AC
Standards/Approvals
Brand	Sick
Supply Voltage DC Max	30 V
Communication Interface
Sensing Distance	1000 mm
Accessory Type
Switching Frequency	10
Switching Current	100
Short Circuit Overload Protection	Yes
Length	18
Switching Frequency Max	10
Dimensions	18 x 18 x 52.7
Width	18
Electrical Connection	M12 Connector
