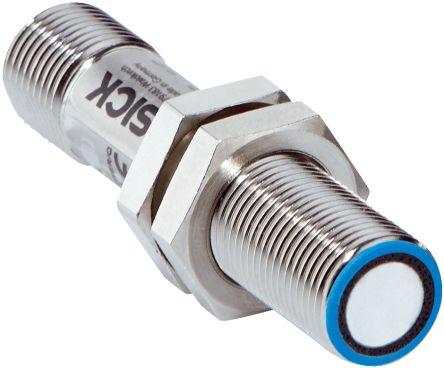

Ultrasonic Sensor UM12-1172271

Technical Reference

Attribute	Value
Supply Voltage
Output Type	Analogue
Maximum Operating Temperature	70
Sensor Technology	Ultrasonic
Shielding
IP Rating	IP65, IP67
Reverse Polarity Protection	Yes
Mounting Type
Thread Size	M12 x 1
Housing Material	Metal
Body Style	Cylindrical
Manufacturer	Sick
Series	UM12
Depth	12
Standards/Approvals
Brand	Sick
Communication Interface
Sensing Distance	150 mm
Switching Frequency
Switching Current
Short Circuit Overload Protection	Yes
Length	60.1
Dimensions	60.1 x 12 x 12
Electrical Connection	Cable
