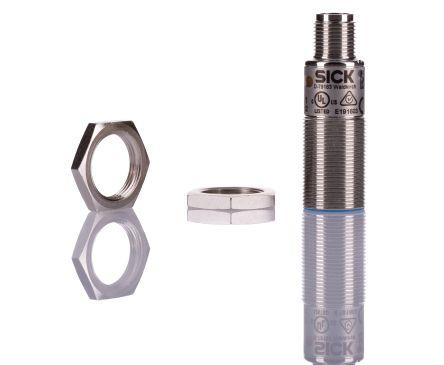

Ultrasonic Sensor UM18-21812A211

Technical Reference

Attribute	Value
Supply Voltage
Output Type	PNP-NPN
Maximum Operating Temperature	70
Sensor Technology	Ultrasonic
Shielding
IP Rating	IP65, IP67
Reverse Polarity Protection	Yes
Mounting Type
Thread Size	M18 x 1
Housing Material	Metal
Body Style	Cylindrical
Manufacturer	Sick
Series	UM18
Depth	18
Standards/Approvals
Brand	Sick
Communication Interface	IO-Link
Sensing Distance	1000 mm
Switching Frequency
Switching Current	100
Short Circuit Overload Protection	Yes
Length	52.7
Dimensions	52.7 x 18 x 18
Electrical Connection	M12 Connector
