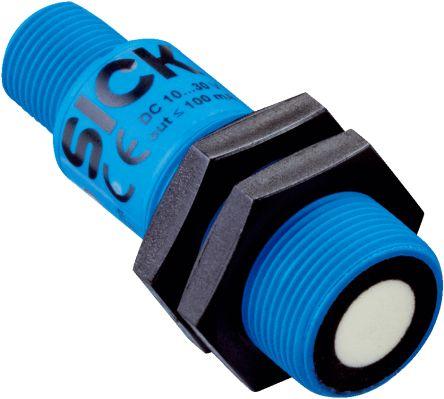

Ultrasonic Sensor UM18-218161101

Technical Specifications

Attribute	Value
Supply Voltage
Output Type	PNP
Maximum Operating Temperature	70
Sensor Technology	Ultrasonic
Shielding
IP Rating	IP65, IP67
Reverse Polarity Protection	Yes
Mounting Type
Thread Size	M18 x 1
Housing Material	Plastic
Body Style	Cylindrical
Manufacturer	Sick
Series	UM18
Depth	18
Standards/Approvals
Brand	Sick
Communication Interface
Sensing Distance	1000 mm
Switching Frequency
Switching Current	200
Short Circuit Overload Protection	Yes
Length	52.7
Dimensions	52.7 x 18 x 18
Electrical Connection	M12 Connector
