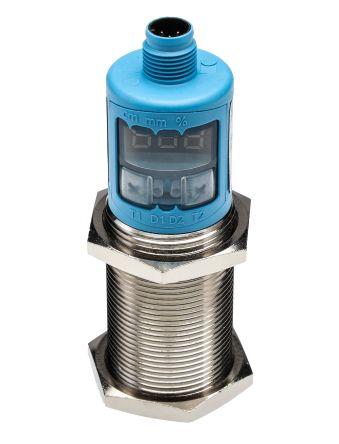

Ultrasonic sensor,60-350mm scan 1xPNPo/p

Technical Reference

Attribute	Value
Supply Voltage
Output Type	PNP
Maximum Operating Temperature	70
Sensor Technology	Ultrasonic
Shielding
IP Rating	IP67
Reverse Polarity Protection	Yes
Mounting Type
Thread Size	M30 x 1.5
Housing Material	Nickel Plated Brass
Body Style	Cylindrical
Manufacturer	Sick
Series
Depth
Standards/Approvals
Brand	Sick
Communication Interface
Sensing Distance	350 mm
Switching Frequency	8
Switching Current	200
Short Circuit Overload Protection	Yes
Length	84
Dimensions
Electrical Connection	4-Pin M12 Connector
