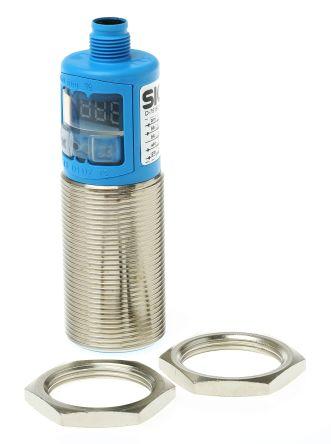

Sick Ultrasonic sensor,60-350mm scan 2xPNPo/p

RS Stock No: 7002867

Mfr Part No: UM30-212112

Brand: Sick

Ultrasonic sensor,60-350mm scan 2xPNPo/p
Unavailable
£382.18(exc. VAT)
£458.62(inc. VAT)
Buy from RS Online

Technical Reference

Technical Specifications

AttributeValue
Supply Voltage9 V to 30 V
Output TypePNP
Maximum Operating Temperature70
Sensor TechnologyUltrasonic
Shielding
Minimum Operating Temperature-25
IP RatingIP67
Reverse Polarity ProtectionYes
Mounting Type
Thread SizeM30 x 1.5
Terminal TypeCable
Housing MaterialNickel Plated Brass
Body StyleCylindrical
ManufacturerSick
Shape
Series
Hazardous Area Certification
Standards/Approvals
BrandSick
Supply Voltage DC Max30 V
Application
Communication Interface
Sensing Distance350 mm
Transducer Frequency
Accessory Type
For Use With
Switching Frequency8 Hz
Switching Current200 mA
Short Circuit Overload ProtectionYes
Length84
Switching Frequency Max
Dimensions
Electrical ConnectionCable
