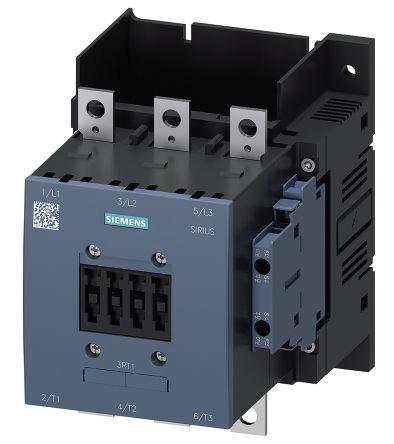

Siemens Siemens SIRIUS Classic 3RT1 Contactor, 24 V ac/dc Coil, 3 Pole, 150 A, 75 kW, 3NO

RS Stock No: 7515568

Mfr Part No: 3RT1055-6AB36

Brand: Siemens

Siemens SIRIUS Classic 3RT1 Contactor, 24 V ac/dc Coil, 3 Pole, 150 A, 75 kW, 3NO
In stock - 2
£478.71(exc. VAT)
£574.45(inc. VAT)
Add to RS basket
1

Technical Specifications

AttributeValue
Minimum Operating Temperature-25 °C
Maximum Operating Temperature+60 °C
Terminal TypeScrew
FunctionMotor Control
Operational Current150 A
Mounting StyleDIN-Rail
Standards/ApprovalsCSA, CCC, CE, EAC, UL
Width170 mm
Length120 mm
BrandSiemens
Auxiliary Contact Configuration2 NC, 2 NO
Coil Voltage [VAC]24
ManufacturerSiemens
Number of Auxiliary Contacts4
Contact Voltage Rating [VAC]1000
Contactor ApplicationMotor Control
Coil Voltage [VDC]24
Interlocking type
Power Rating [KVA]
Power Rating [KVAR]
Utilisation categoryAC-3, AC-3e
Control Circuit Voltage Uc24 V
Pole and Throw Configuration3P
Contact Current Rating [AC]150
Depth169 mm
Power Rating [kW]75
Contact Voltage Rating [VDC]
Number of Poles3
Series3RT1
Contact Current Rating [DC]160
Normal State Configuration3 NO
