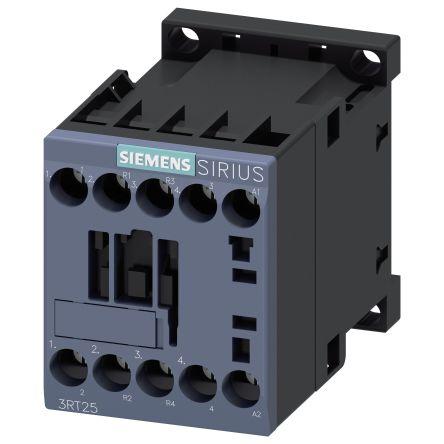

Siemens Siemens SIRIUS Contactor, 230 V ac Coil, 4 Pole, 16 A, 7.5 kW, 2NO + 2NC

RS Stock No: 2032598

Mfr Part No: 3RT2518-1AP00

Brand: Siemens

Siemens SIRIUS Contactor, 230 V ac Coil, 4 Pole, 16 A, 7.5 kW, 2NO + 2NC
Out of stock
£52.03(exc. VAT)
£62.44(inc. VAT)
Add to RS basket
1

Technical Specifications

AttributeValue
Minimum Operating Temperature-25 °C
Maximum Operating Temperature+60 °C
Terminal TypeScrew
FunctionMotor Control
Operational Current16 A
Mounting StyleScrew, DIN-Rail
Standards/ApprovalsCSA, CCC, EAC, UL
Width45 mm
Length57.5 mm
BrandSiemens
Auxiliary Contact Configuration
Coil Voltage [VAC]230
ManufacturerSiemens
Number of Auxiliary Contacts0
Contact Voltage Rating [VAC]690
Contactor ApplicationMotor Control
Coil Voltage [VDC]
Interlocking type
Power Rating [KVA]
Power Rating [KVAR]
Utilisation categoryAC-3
Control Circuit Voltage Uc230 V
Pole and Throw Configuration4P
Contact Current Rating [AC]16
Depth73 mm
Power Rating [kW]7.5
Contact Voltage Rating [VDC]
Number of Poles4
Series3RT2
Contact Current Rating [DC]20
Normal State Configuration2 NC, 2 NO
