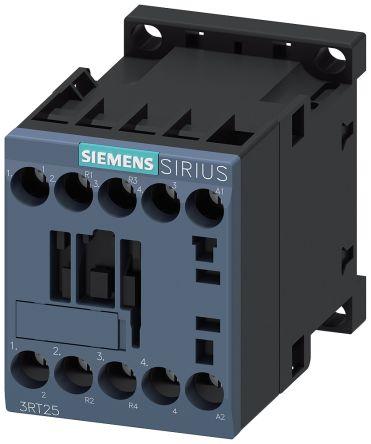

Siemens Siemens SIRIUS Contactor, 24 V ac Coil, 4 Pole, 12 A, 5.5 kW, 2NC + 2NO

RS Stock No: 2162842

Mfr Part No: 3RT2517-1AB00

Brand: Siemens

Siemens SIRIUS Contactor, 24 V ac Coil, 4 Pole, 12 A, 5.5 kW, 2NC + 2NO
Unavailable
Price unavailable
Add to RS basket
1

Technical Specifications

AttributeValue
Minimum Operating Temperature-25 °C
Maximum Operating Temperature+60 °C
Terminal TypeScrew
FunctionMotor Control
Operational Current12 A
Mounting StyleScrew, DIN-Rail
Standards/ApprovalsCSA, CCC, EAC, UL
Width45 mm
Length57.5 mm
BrandSiemens
Auxiliary Contact Configuration
Coil Voltage [VAC]24
ManufacturerSiemens
Number of Auxiliary Contacts0
Contact Voltage Rating [VAC]690
Contactor ApplicationMotor Control
Coil Voltage [VDC]
Interlocking type
Power Rating [KVA]
Power Rating [KVAR]
Utilisation categoryAC-3
Control Circuit Voltage Uc24 V
Pole and Throw Configuration4P
Contact Current Rating [AC]12
Depth73 mm
Power Rating [kW]5.5
Contact Voltage Rating [VDC]
Number of Poles4
Series3RT2
Contact Current Rating [DC]20
Normal State Configuration2 NC, 2 NO
