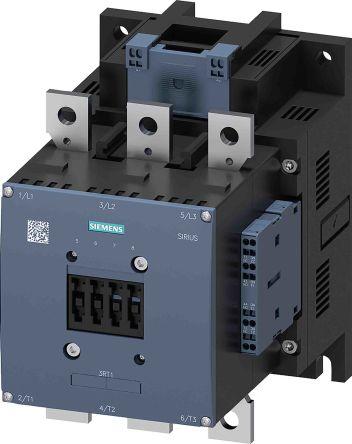

Siemens SIRIUS Contactor, 24 V dc Coil, 3 Pole, 300 A, 160 kW, 2NO + 2NC

More Tech Docs and Models

Download this product’s symbols, footprints, 3D STEPS and more from our partners. Other rules about downloading the files here.

By downloading these files, you agree to our Terms and Conditions and Privacy Policy

Attribute	Value
Minimum Operating Temperature	-25 °C
Maximum Operating Temperature	+60 °C
Terminal Type	Screw
Function	Reversing
Operational Current	95 A
Mounting Style	Screw
Standards/Approvals	CSA, CCC, EAC, UL
Width	145 mm
Length	210 mm
Brand	Siemens
Auxiliary Contact Configuration	2 NC, 2 NO
Coil Voltage [VAC]	26
Manufacturer	Siemens
Number of Auxiliary Contacts	4
Contact Voltage Rating [VAC]	1000
Contactor Application	Safety
Coil Voltage [VDC]	26
Interlocking type
Power Rating [KVA]	330
Power Rating [KVAR]
Utilisation category	AC-3, AC-3e
Control Circuit Voltage Uc	26 V
Pole and Throw Configuration	3P
Contact Current Rating [AC]	95
Depth	202 mm
Power Rating [kW]	160
Contact Voltage Rating [VDC]
Number of Poles	3
Series	3RT1
Contact Current Rating [DC]	300
Normal State Configuration	3 NO
