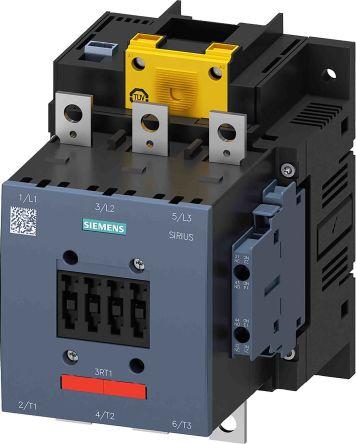

Siemens Siemens SIRIUS Contactor, 277 V Coil, 3 Pole, 150 A, 75 kW, 2NO + 2NC

RS Stock No: 2104420

Mfr Part No: 3RT1055-6SP36-3PA0

Brand: Siemens

Siemens SIRIUS Contactor, 277 V Coil, 3 Pole, 150 A, 75 kW, 2NO + 2NC
Unavailable
Price unavailable
Add to RS basket

Technical Specifications

AttributeValue
Minimum Operating Temperature-25 °C
Maximum Operating Temperature+60 °C
Terminal TypeScrew
FunctionReversing
Operational Current65 A
Mounting StyleScrew
Standards/ApprovalsCSA, CCC, EAC, UL
Width120 mm
Length172 mm
BrandSiemens
Auxiliary Contact Configuration2 NC, 2 NO
Coil Voltage [VAC]277
ManufacturerSiemens
Number of Auxiliary Contacts4
Contact Voltage Rating [VAC]1000
Contactor ApplicationSafety
Coil Voltage [VDC]
Interlocking type
Power Rating [KVA]170
Power Rating [KVAR]
Utilisation categoryAC-3, AC-3e
Control Circuit Voltage Uc277 V
Pole and Throw Configuration3P
Contact Current Rating [AC]65
Depth170 mm
Power Rating [kW]75
Contact Voltage Rating [VDC]
Number of Poles3
Series3RT1
Contact Current Rating [DC]160
Normal State Configuration3 NO
