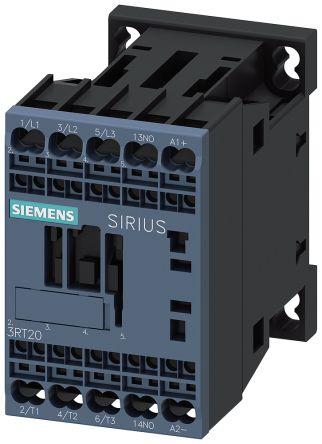

Siemens Siemens SIRIUS Reversing Contactor, 24 V dc Coil, 3 Pole, 16 A, 7.5 kW, 1NO

RS Stock No: 2032723

Mfr Part No: 3RT2018-2FB41

Brand: Siemens

Siemens SIRIUS Reversing Contactor, 24 V dc Coil, 3 Pole, 16 A, 7.5 kW, 1NO
Unavailable
Price unavailable
Add to RS basket
1

Technical Specifications

AttributeValue
Minimum Operating Temperature-25 °C
Maximum Operating Temperature+60 °C
Terminal TypePush-In
FunctionMotor Control
Operational Current16 A
Mounting StyleScrew, DIN-Rail
Standards/ApprovalsCSA, CCC, EAC, UL
Width45 mm
Length70 mm
BrandSiemens
Auxiliary Contact Configuration1 NO
Coil Voltage [VAC]
ManufacturerSiemens
Number of Auxiliary Contacts1
Contact Voltage Rating [VAC]690
Contactor ApplicationMotor Control
Coil Voltage [VDC]24
Interlocking type
Power Rating [KVA]10.6
Power Rating [KVAR]
Utilisation categoryAC-3, AC-3e
Control Circuit Voltage Uc24 V
Pole and Throw Configuration3P
Contact Current Rating [AC]16
Depth73 mm
Power Rating [kW]7.5
Contact Voltage Rating [VDC]
Number of Poles3
Series3RT2
Contact Current Rating [DC]20
Normal State Configuration3 NO
