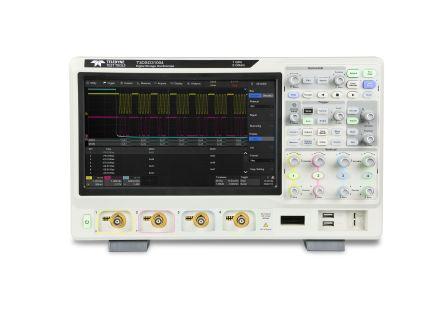

Teledyne LeCroy Teledyne LeCroy T3DSO3354 Bench Oscilloscope, 350MHz, 16 Digital Channels, 4 Analogue Channels

RS Stock No: 2241772

Mfr Part No: T3DSO3354-PROMO-1

Brand: Teledyne LeCroy

Teledyne LeCroy T3DSO3354 Bench Oscilloscope, 350MHz, 16 Digital Channels, 4 Analogue Channels
In stock - 2
£8,321.50(exc. VAT)
£9,985.80(inc. VAT)
Buy from RS Online

Technical Specifications

AttributeValue
Built-in Signal GeneratorNo
Power SourceMains
Oscilloscope TypeMixed Signal
Input Impedance1 MΩ
Sample Rate1 GS/s
Display TypeTFT LCD
Calibrated service type
Record Length250 Mpts
Dimensions370 x 144 x 231 mm
Number of Automatic measurements50
BrandTeledyne LeCroy
Trigger TypeWindow, Pulse Width, Runt Pulse, Window Dropout, Window Pulse Width, Logic, Edge, Dropout, Interval
Number of Channels16
Memory Depth250 Mpts
Battery Type
Wi-FiNo
Waveform Refresh Rate00, 1, 000 wfm/s
Safety CategoryUL 61010-2-030:2018; CAN/CSA-C22.2 No. 61010-2-030:2018., UL 61010-1:2012/R: 2018-11; CAN/CSA-C22.2 No. 61010-1:2012/A1:2018-11
Maximum Time Base
Digital/AnalogueDigital
Rise Time1 ns
Minimum Time Base1 (ns/div)
ManufacturerTeledyne LeCroy
Number of Analogue Channels4
Screen Size7 in
Weight4.0 kg
Bandwidth350 MHz
Manufacturer Part NumberT3DSO3354-PROMO-1
Waveform Math and Analysisdivision, average, FFT, integration, subtraction, multiplication, square root, addition, differential
Touch ScreenNo
USB PoweredNo
Input Capacitance16 pF
Vertical Resolution8 bit
Oscilloscope FormBench
Number of Digital Channels16
Built-in Wave GeneratorYes
Communication InterfaceUSB
