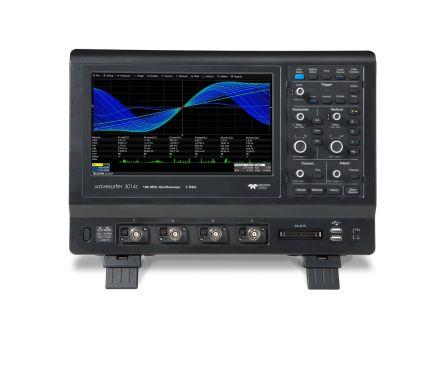

Teledyne LeCroy WaveSurfer 3104z FULLY LOADED Bench Oscilloscope, 1GHz, 4 Analogue Channels

Teledyne LeCroy Teledyne LeCroy WaveSurfer 3104z FULLY LOADED Bench Oscilloscope, 1GHz, 4 Analogue Channels WaveSurfer 3104Z

3 in stock
£8,990.00(exc. VAT)
£10,788.00(inc. VAT)

Mfr part no: WaveSurfer 3104Z

RS Stock No.: 1749989

Brand: Teledyne LeCroy

rs components
Buy from UK.RS-ONLINE.COM(Exact stock levels may differ)

Technical Specifications

AttributeValue
Built-in Signal GeneratorNo
Power SourceMains
Oscilloscope TypeDigital Storage
Input Impedance1 MΩ
Sample Rate125 GS/s, 10 GS/s
Display TypeLCD
Calibrated service type
Record Length12.5 Mpts
Maximum Vertical Sensitivity10000 (mV/div)
Dimensions380 x 125 x 270 mm
BrandTeledyne LeCroy
Trigger TypeWindow, Pulse Width, Runt Pulse, Window Dropout, Window Pulse Width, Logic, Edge, Dropout, Interval
Number of Channels4
Memory Depth12.5 Mpts
Battery Type
Wi-FiNo
Waveform Refresh Rate
Safety CategoryCAT I, CAT II
Maximum Time Base100 (s/div)
Digital/AnalogueDigital
Rise Time0.45 ns
Minimum Time Base0.5 (ns/div)
ManufacturerTeledyne LeCroy
Number of Analogue Channels4
Screen Size12.1 in
Weight5.9 kg
Bandwidth1000 MHz
Minimum Vertical Sensitivity1 (mV/div)
Manufacturer Part NumberWaveSurfer 3104Z
Waveform Math and AnalysisFloor, Invert, Trend, Product, Sum, Averaging, Difference, Envelope, Rescale, Square, Roof, Square Root, Derivative, Integral, Enhanced Resolution, Ratio, Reciprocal, Absolute Value, Zoom and FFT
Touch ScreenYes
USB PoweredNo
Input Capacitance16 pF
Vertical Resolution12 bit
Oscilloscope FormBench
Number of Digital Channels16
Built-in Wave GeneratorNo
Communication InterfaceLIN, CAN, USB, UART, RS232, SPI
