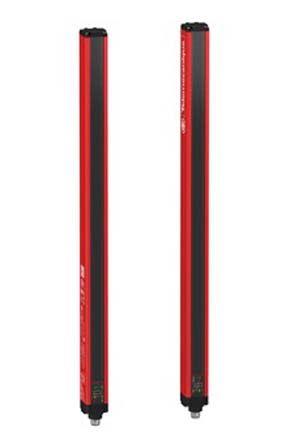

Light Beam, T2, 4B, H 910mm

Technical Reference

Attribute	Value
Terminal Type
Supply Voltage	24 V
Output Type	PNP, 2 OSSD
Manufacturer	Telemecanique
Number of Beams	7
Features	Automatic/Manual Restart, 2 PNP Output, Multi-Colour LEDs
Series	XUSL2E
Product Range	Preventa
Response Time Max	3.5 ms
Brand	Telemecanique
Protective Area Height	910 mm
Sensing Distance Max	12000 mm
Beam Resolution	300 mm
Height	1053 mm
Protection Type	Body
PL (EN ISO 13849-1)	PL c
Length	31 mm
Maximum Protective Width
Sensing Distance Min	0 mm
Component Type	Sender, Receiver
Dimensions	31 x 29.4 x 1053 mm
Width	29.4 mm
Safety Type	2
SIL (IEC 61508)	SIL 1
