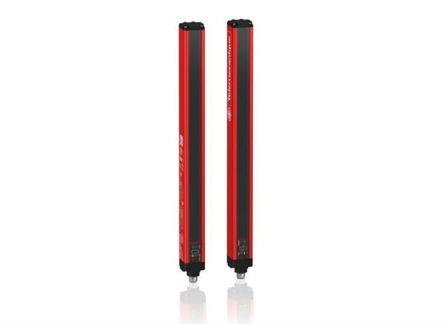

Telemecanique Light Curtain 1360MM 30MM RES 68 Beam

RS Stock No: 1964116

Mfr Part No: XUSL4MB30H136N

Brand: Telemecanique

Light Curtain 1360MM  30MM RES 68 Beam
£3,372.09(exc. VAT)
£4,046.51(inc. VAT)
Buy from RS Online

Technical Specifications

Terminal Type
Supply Voltage24 V
Output TypePNP, 2 OSSD
Number of Beams68
FeaturesAutomatic/Manual Restart, 2 PNP Output, Multi-Colour LEDs
Product RangePreventa
Response Time Max19 ms
Protective Area Height1360 mm
Sensing Distance Max12000 mm
Beam Resolution30 mm
Protection TypeHand Protection
PL (EN ISO 13849-1)PL e
Length55 mm
Maximum Protective Width
Sensing Distance Min0 mm
Component TypeSender, Receiver
Dimensions55 x 50 x 1445 mm
Width50 mm
Safety Type4
SIL (IEC 61508)SIL 3
