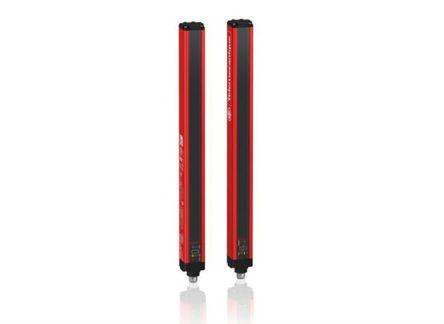

Light Curtain 1660MM 40MM RES 56 Beam

Technical Reference

Attribute	Value
Terminal Type
Supply Voltage	24 V
Output Type	PNP, 2 OSSD
Manufacturer	Telemecanique
Number of Beams	56
Features	Automatic/Manual Restart, 2 PNP Output, Multi-Colour LEDs
Series	XUSL4M
Product Range	Preventa
Response Time Max	16.5 ms
Brand	Telemecanique
Protective Area Height	1660 mm
Sensing Distance Max	12000 mm
Beam Resolution	40 mm
Height
Protection Type	Hand Protection
PL (EN ISO 13849-1)	PL e
Length	55 mm
Maximum Protective Width
Sensing Distance Min	0 mm
Component Type	Sender, Receiver
Dimensions	55 x 50 x 1745 mm
Width	50 mm
Safety Type	4
SIL (IEC 61508)	SIL 3
