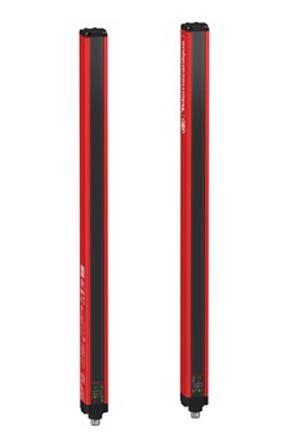

Telemecanique Light Curtain, T2, Res. 30mm, H 260mm

RS Stock No: 1278310

Mfr Part No: XUSL2E30H026N

Brand: Telemecanique

Light Curtain, T2, Res. 30mm, H 260mm
Out of stock
£715.65(exc. VAT)
£858.78(inc. VAT)
Add to RS basket
1

Technical Assets

Technical Specifications

AttributeValue
Terminal Type
Supply Voltage24 V
Output TypePNP, 2 OSSD
ManufacturerTelemecanique
Number of Beams13
FeaturesAutomatic/Manual Restart, 2 PNP Output, Multi-Colour LEDs
SeriesXUSL2E
Product RangePreventa
Response Time Max6 ms
BrandTelemecanique
Protective Area Height260 mm
Sensing Distance Max12000 mm
Beam Resolution30 mm
Height313 mm
Protection TypeHand Protection
PL (EN ISO 13849-1)PL c
Length31 mm
Maximum Protective Width
Sensing Distance Min0 mm
Component TypeSender, Receiver
Dimensions31 x 29.4 x 313 mm
Width29.4 mm
Safety Type2
SIL (IEC 61508)SIL 1
