Technical Specifications

Standards Met
Output TypeNO/NC
Maximum Operating Temperature55
Maximum DC Voltage240 V
Minimum Operating Temperature-25
IP RatingIP65
Detection Range1000 mm
Mounting Type
Thread Size
Terminal Type5-Wire Cable 2 m
Housing MaterialPBT
Body StyleRectangular

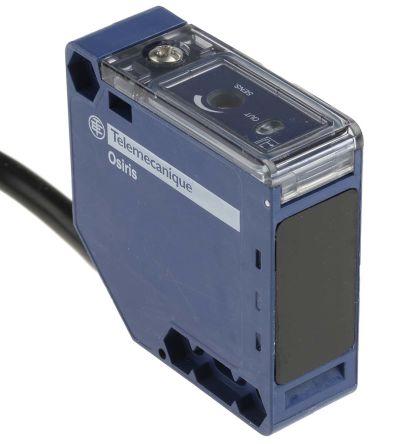

ManufacturerTelemecanique Sensors
Optical Technology
Detection TypeDiffuse
Sensor TypeCompact
Maximum AC Voltage240 V
Light SourceInfrared LED
Maximum Current3000 mA
Hazardous Area Certification
Switching Mode
BrandTelemecanique Sensors
Communication Interface
Response Time25 ms
Electrical Connection5 Wire Cable 2 m
