Technical Reference

Technical Specifications

AttributeValue
Mounting Type
Thread Size
Terminal TypeM12 Connector
Housing MaterialStainless Steel
Body StyleCylindrical axial
Standards Met
Output TypePNP
Maximum Operating Temperature55 °C
Maximum DC Voltage24 V
Minimum Operating Temperature0 °C
IP RatingIP69K
Detection Range1400 mm
ManufacturerTelemecanique Sensors
Optical TechnologyPhototransistor

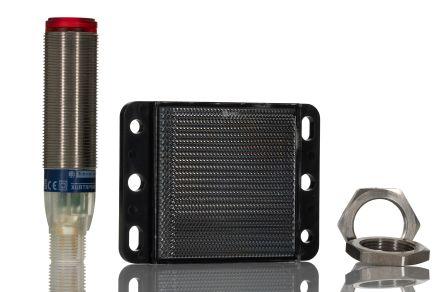

Detection TypeRetro-reflective
Series
Sensor TypeBarrel
Light SourceInfrared LED
Maximum Current100 mA
Hazardous Area Certification
Switching Mode
BrandTelemecanique Sensors
Communication Interface
Response Time0.5 ms
Electrical ConnectionM12 Connector
