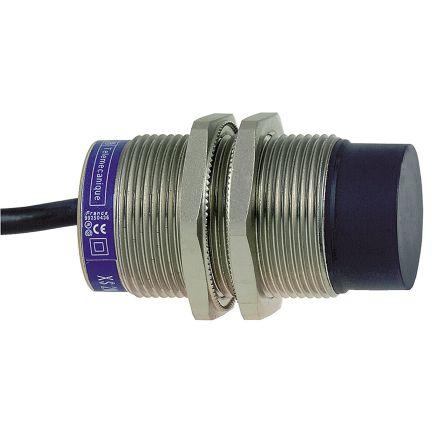

Ind Sensor 30mm Discrete 1NC 24-240V 2m

Technical Specifications

Attribute	Value
Supply Voltage	20 to 264, 24 to 240
Output Type
Maximum Operating Temperature	70
Sensor Technology	Inductive
Shielding
IP Rating	IP69K, IP68
Reverse Polarity Protection
Mounting Type	Non-Flush
Thread Size	M30 x 1.5
Housing Material	PPS, Nickel Plated Brass
Body Style	Cylindrical
Manufacturer	Telemecanique Sensors
Series
Depth
Standards/Approvals	CSA, UL Certified, CE
Brand	Telemecanique Sensors
Communication Interface
Sensing Distance	22 mm
Switching Frequency
Switching Current	300
Short Circuit Overload Protection
Length	66.1
Dimensions
Electrical Connection	3-Wire, 2 m Cable
