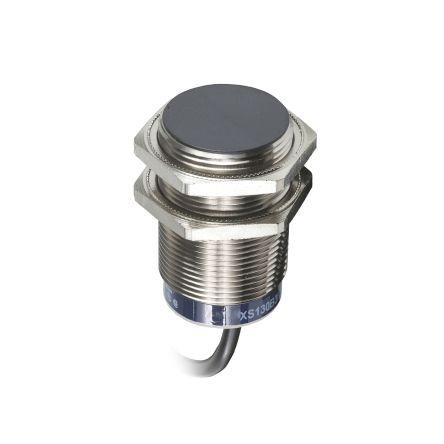

Ind Sensor 30mm Metal NC PNP 12-48V 5m

Technical Reference

Attribute	Value
Mounting Type	Flush
Thread Size	M30 x 1.5
Housing Material	PPS, Nickel Plated Brass
Body Style	Cylindrical
Supply Voltage	10 to 58, 12 to 48
Output Type	PNP
Maximum Operating Temperature	70
Sensor Technology	Inductive
Shielding
IP Rating	IP69K, IP68
Reverse Polarity Protection	Yes
Manufacturer	Telemecanique Sensors
Series
Depth
Standards/Approvals	CSA, UL Certified, CE, E2
Brand	Telemecanique Sensors
Communication Interface
Sensing Distance	15 mm
Switching Frequency
Switching Current	200
Short Circuit Overload Protection	Yes
Length	44.25
Dimensions
Electrical Connection	M8, 3-Pin
